Accurate representation

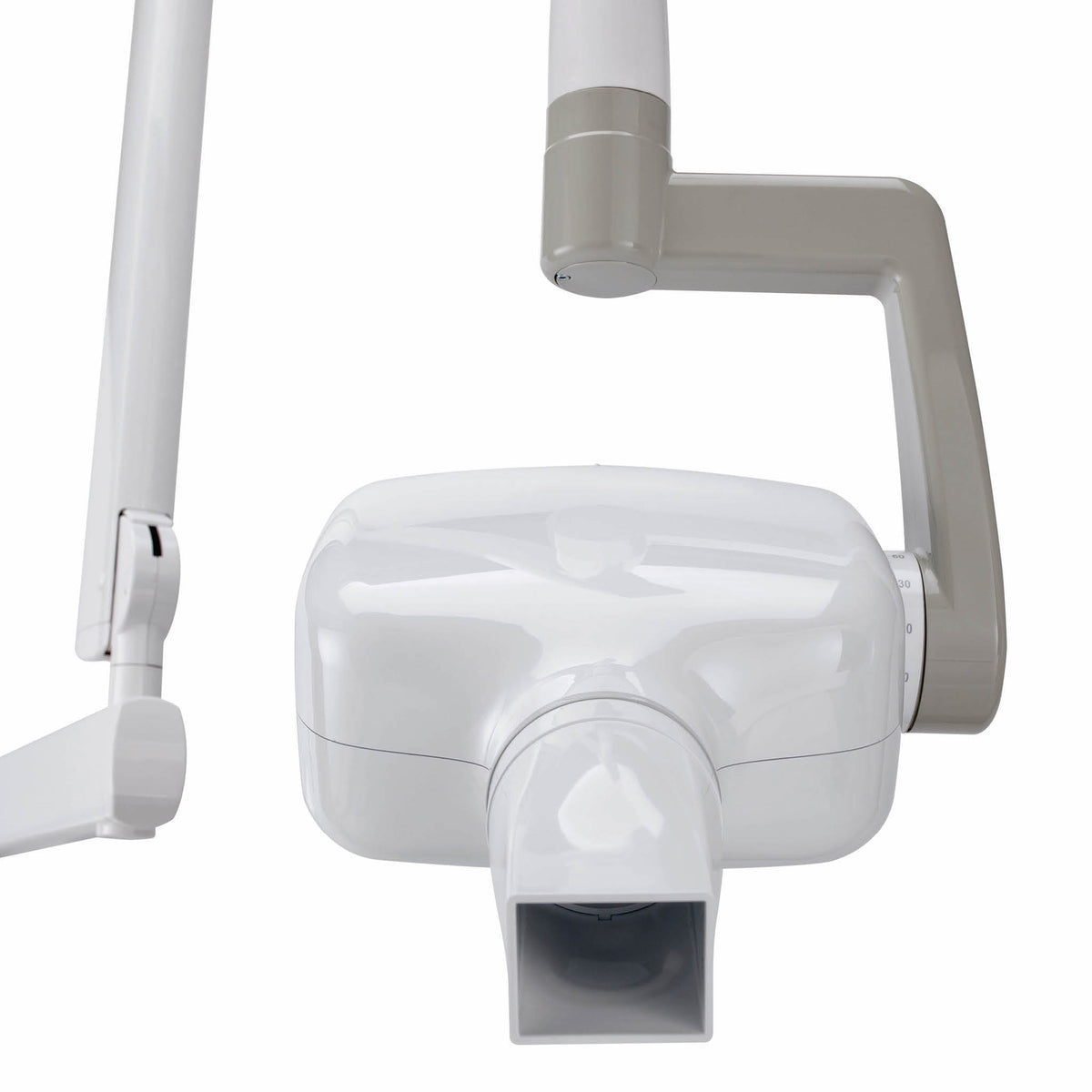

The compact tube head features long internal x-ray collimation, resulting in a default source-to-object distance of 30 cm, resulting in sharper images and important diagnostic details. Sharper images come from a 0.4mm focal point and exceptional collimation achieved with a 30cm embedded collimation.
Top class ergonomics
Thanks to the graduated scale, the position of the hands and head is stable, efficient and fully adaptable to work. Consists of an extruded aluminum arm with integrated self-balancing system - available in 40cm, 60cm and 90cm lengths. And the adjustable wall support ensures maximum installation versatility.
Low X-ray dose
Harmful low-energy "soft" radiation (which is not diagnostic) is almost completely eliminated. The constant potential high-frequency X-ray generator together with the integrated 30 cm collimation increases the parallelism of the X-rays, resulting in better image quality and a significantly lower X-ray dose.
Simple wireless control
A practical, easy-to-use handheld device for fast, accurate X-ray imaging, making it easy to choose the most suitable application. In addition, the sequential exposure schedule allows users to control the precise dose delivered and the temperature of the tube. Can be attached to any available surface or alternatively to the available Wi-Fi version.
Multi-Mode automatic modulation of exposure parameters always ensures optimal choice of time and power.
Universal and easy to install
The RXDC can be used with any type of direct or indirect digital sensor and x-ray film. 28 levels of sensitivity ensure a sharp image in any situation. Additionally, installation is quick with multiple positioning options.
The version is mounted on a trolley
For maximum mobility, the RXCD X-ray unit can be mounted on a trolley. A practical trolley allows you to move the X-ray machine anywhere in the operation.
Specifications:
| Generator | Constant potential controlled by microprocessor |
| Frequency | 145-230 KHz with self-tuning (typically 175 KHz) |
| Focal point | 0.4 mm (IEC 336) |
| General filtering | 2mm @ 60kV / 2mm @ 65kV / 2mm @ 70kV |
| Anode current | 4 / 8 mA |
| X-ray tube voltage | 60 / 65 / 70 kV |
| Exposure time | 0.020 to 1000 seconds, scales R'10 and R'20 |
| The distance from the source to the skin | 20 and 30 cm |
| Irradiated field | Ø 60 mm and Ø 55 mm (with round cone) |
| Additional collimators | 35 x 45 mm (with rectangular cone for size 2 sensors) | 31 x 41 mm and 22 x 35 mm, for size 1 and 0 sensors |
| feed | 50/60 Hz, 115-120Vac ±10% or 230-240Vac ±10% |
| Work cycle | Continuous operation with self-adjustment up to 1 s/90 s |
| Maximum arm extension | 230 cm, from the wall |
| Confirmation | Standard (fixed on the wall) or mobile |
