Class В autoclaves
TOUCH SCREEN
- CE certificate, meets the requirements of the LST EN 13060 standard.
- 6 standard programs (1 freely programmable).
- Drying of tools and materials.
- Vacuum test, Helix test.
- Manual water filling (can be automated).

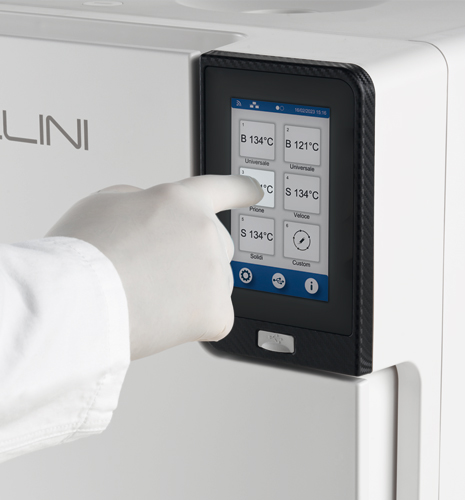

- Color touch screen, without buttons (model C-17 Plus).
- Wastewater disposal into the sewer.
- Double lock, the door does not open when the pressure rises.
- Instrument cases:
- 17 liter autoclave, 5 pcs trays (288 x 188 x 17 mm).
- 22 liter autoclave, 5 pcs cases (384 x 188 x 17 mm).
- 28 liter autoclave, 6 pcs trays (384 x 208 x 17 mm).
- Chamber dimensions: 17 l - Ø250 mm x 350 mm.
- Chamber dimensions 22 l - Ø250 mm x 450 mm.
- Chamber dimensions 28 l - Ø280 mm x 450 mm.
- Can be equipped with an external printer.
- USB connection to connect an additional memory card reader and save information to a personal computer.
Specifications:
| C-17 PLUS | C-22 PLUS | C-28 PLUS | |
| Camera capacity | 17 l | 22 l | 28 l |
| External dimensions W x H x D |
480 x 500 x 600 mm |
||
| Camera dimensions Diameter x Depth | 250 x 350 mm | 250 x 450 mm | 280 x 450 mm |
| overall weight | 51 kg | 56 kg | 60 kg |
| Number of pallets | 5 | 5 | 6 |
Sterilization cycles:
| Model | C - 17 Plus | C - 22 Plus | C - 28 Plus | |
| No. | Cycle type | Cycle duration, min. | ||
| 1 | 134 °C universal | 27 | 29 | 37 |
| 2 | 121 °C universal | 43 | 46 | 50 |
| 3 | 134°C FLASH (fast) | 20 | 23 | 26 |
| 4 | 134 °C packaged instruments | 18 | 22 | 26 |
| 5 | 134 °C PRION | 41 | 43 | 51 |
| 6 | Vacuum test | 18 | 18 | 19 |
| 7 | Helix / B&D test | 20 | 24 | 28 |
