Class В autoclaves
A nano-ceramic recirculation filter built into the secondary tank allows the water to be distilled and purified for reuse during the next sterilization cycle.
The built-in conductivity sensor ensures compliance with water quality parameters, as it protects the internal components of the autoclave from excess limescale.
The total consumption is 5 liters per 50 cycles, which means approximately 100 ml/cycle.

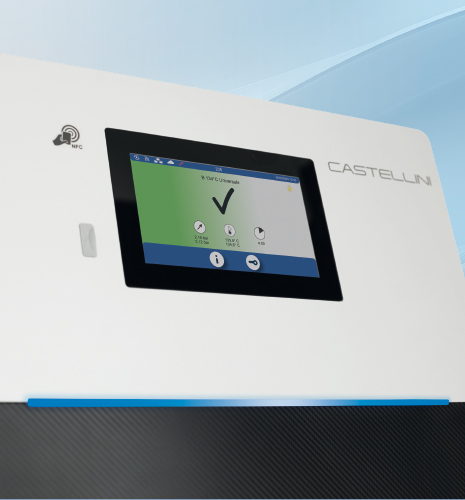

- 7 inch touch screen, easy to use.
- CE certificate, meets the requirements of the LST EN 13060 standard.
- 6 standard programs (1 freely programmable).
- Drying of tools and materials.
- Vacuum test, Helix test.

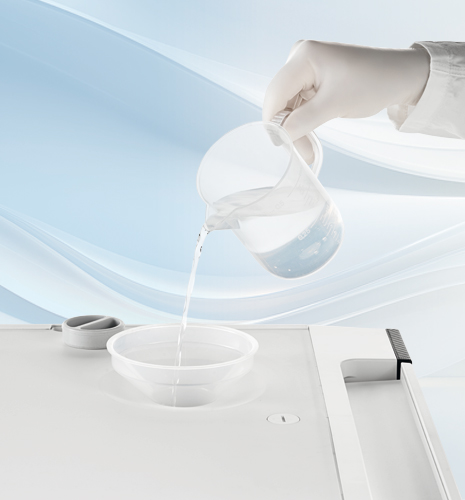

- Manual water filling (can be automated).
- Number of device cases:
- 17 liter autoclave, case of 5 (288 x 188 x 17 mm).
- 22 liter autoclave, case of 5 (384 x 188 x 17 mm).
- 28 liter autoclave, case of 6 (384 x 208 x 17 mm).
- Can be equipped with an external printer.
- USB connection to save information to a computer.
Specifications:
| C-17 Platinum | C-22 Platinum | C-28 Platinum | |
| Camera capacity | 17 l | 22 l | 28 l |
| External dimensions W x H x D |
480 x 500 x 600 mm |
||
| Camera dimensions Diameter x Depth | 250 x 350 mm | 250 x 450 mm | 280 x 450 mm |
| overall weight | 54 kg | 55 kg | 56 kg |
| Number of pallets | 5 | 5 | 6 |
Sterilization cycles:
| Model | C-17 Platinum | C-22 Platinum | C-28 Platinum | |
| No. | Cycle type | Cycle duration, min. | ||
| 1 | 134 °C universal | 32 | 36 | 41 |
| 2 | 121 °C universal | 45 | 49 | 54 |
| 3 | 134°C FLASH (fast) | 20 | 23 | 26 |
| 4 | 134 °C packaged instruments | 18 | 20 | 24 |
| 5 | 134 °C PRION | 46 | 50 | 55 |
| 6 | Vacuum test | 18 | 18 | 19 |
| 7 | Helix / B&D test | 20 | 24 | 28 |
